Pipe Mold Mold For Ductile Cast Iron Pipe
- HHF
- China
- 2 months
- 200pcs per month
Tube mould is one of the essential tools in the production line of centrifugal casting cast iron pipes at present. The commonly used material is 21CrMo10. The working environment of tube mould is very harsh.The tube die is a kind of thin tube forging. During the production of tube die, the inner hole of billet contacts with mandrel and horse bar, and the billet cools rapidly, resulting in the complicated bearing condition of billet.
Because of its long length and thin wall, tube forging parts are prone to inner hole cracks and end cracks in the forging process.The influence of predrawing amount and predrawing form on the quality of tube die forgings was proposed.The scrap rate and reject rate of tube die are greatly reduced.
Product Introduction

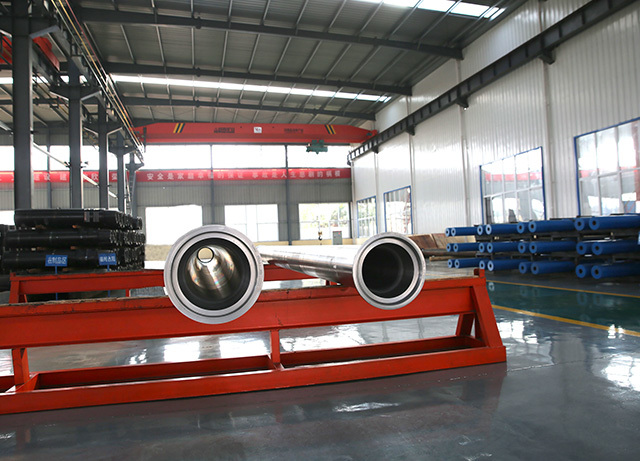

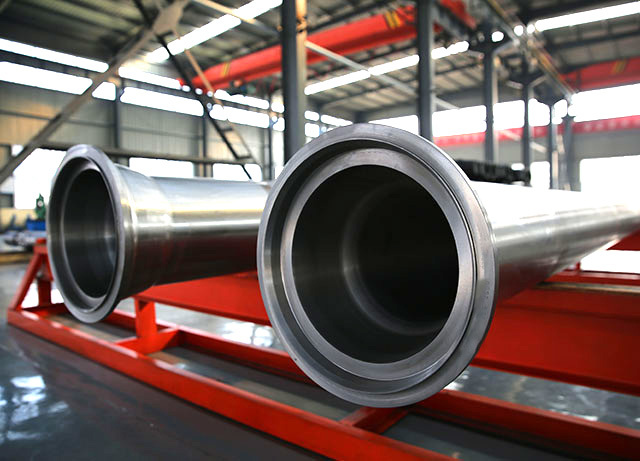

21CrMo10 Pipe Mold Mold For Ductile Cast Iron Pipe
The Brinell hardness difference of the full length of the pipe mold is not more than 30HBW
T-type water-cooled metal tube mold structure type
The Brinell hardness different of the pipe mold less than 30HBW for the whole length.
Size of T tube water-cooled metal Pipe Mould (mm)
| Pipe diameter DN | L1 | L2 | L3 | D1 | D2 | D3 | D4 | D5 | D6 | Weight (kg) |
| 80 | 6287 | 27 | 6129 | 270 | 205 | 164.7 | 97.2 | 164 | 183 | 530 |
| 100 | 6287 | 27 | 6129 | 270 | 205 | 164.7 | 116.8 | 164 | 183 | 400 |
| 150 | 6287 | 27 | 6129 | 325 | 266 | 217 | 168.9 | 209 | 209 | 605 |
| 200 | 6287 | 27 | 6129 | 385 | 325 | 281 | 221.1 | 261 | 288 | 764 |
| 250 | 6287 | 27 | 6129 | 455 | 385 | 336 | 273.4 | 320 | 340 | 1112 |
| 300 | 6287 | 27 | 6129 | 520 | 443 | 393.9 | 325.2 | 376 | 387 | 1434 |
| 350 | 6341 | 37 | 6169 | 575 | 495 | 448 | 378 | 444 | 450 | 2045 |
| 400 | 6341 | 37 | 6169 | 615 | 550 | 502 | 429 | 494 | 502 | 2416 |
| 500 | 6341 | 37 | 6169 | 755 | 663 | 606.5 | 532.1 | 608 | 610 | 3557 |
| 600 | 6348 | 44 | 6169 | 850 | 790 | 716.1 | 635.3 | 715 | 730 | 4274 |
| 700 | 6348 | 44 | 6169 | 970 | 902 | 828 | 738.5 | 828 | 835 | 5838 |
| 800 | 6600 | 181 | 6180 | 1148 | 1013 | 948.4 | 843.5 | 940 | 930 | 7269 |
| 900 | 6600 | 181 | 6180 | 1258 | 1123 | 1058 | 947.5 | 1063 | 1060 | 9800 |
| 1000 | 6600 | 181 | 6180 | 1350 | 1233 | 1165 | 1051 | 1166 | 1160 | 10516 |
Chemical Compososition (m%)
| Grade | C | Si | Mn | Cr | Mo | P | S |
| 21CrMo10 | 0.16-0.23 | 0.20-0.40 | 0.20-0.40 | 2.20-2.60 | 0.30-2.60 | ≤0.015 | ≤0.015 |
The content of residual harmful elements such as lead, arsenic, tin, antimony, and bismuth can be controlled according to the requirements of the buyer.
According to buyer's requirement such as lead,arsenic,tin,antimony,bismuth residual content of harmful elements.
Mechanical Property
| Grade | Rm (MPa) | Rp 0.2 (MPa) | A(%) | WITH(%) | A k (J) | HBW |
| 21CrMo10 | ≥780 | ≥650 | ≥16 | ≥60 | ≥78 | ≥240 |
Reference Extubation Quantity (Pieces) Service Life for Reference (PC)
| Code specification | Service life | Code specification | Service life | ||||
| DN80-DN100 | ≥9600 | DN450 | ≥2000 | ||||
| DN150 | ≥8800 | DN500 | ≥1880 | ||||
| DN200 | ≥8000 | DN600 | ≥1600 | ||||
| DN250 | ≥7200 | DN700 | ≥1400 | ||||
| DN300 | ≥5200 | DN800 | ≥1200 | ||||
| DN350 | ≥4800 | DN900-DN1200 | ≥1000 | ||||
About Us
Henan zhongyuan Heavy Forging Co.,Ltd(HHF) is a National Hi-Tech Enterprise including Forging Plant,Heat treatment Plant,Petroleum Equipment Plant,Machining Plant,one Provincial Engineering Technology Research Center for Drilling Tools Stabilizer,one physical and chemical laboratory,one Municipal Technology Research and Development Center.HHF has been certified by API Q1 Quality Management System,License of Using Official API 7-1 Monogram,CSSC Quality System,ISO 9001:2015,ISO/TS29001 International Quality System.
The factory covers an area of approximately 150 mu (about 100,000 square meters). The company operates 3 large-scale open-die forging production lines (with core equipment including 10,000-ton hydraulic presses), 2 modern die forging production lines, along with supporting large-scale CNC machining centers, heat treatment lines, and a well-equipped National Class II laboratory. The company has an annual production capacity of 50,000 tons for large open-die and die forgings (with the ability to produce single pieces weighing over 30 tons).
HHF is specialized in Research,Production,Sales and Services for Petroleum and Large Precision Forging.HHF is the largest and most professional Drill Stabilizer manufacturers in China. The products such as Drill Stabilizer,Non-magnetic Drill Stabilizer,Drill Collar,Non-Magnetic Drill Collar,Drill Pipe,Mining Drill Pipe,Roller Reamer,Pump Block,Marine Shaft,S team Turbine Shaft,Motor Shaft and Pipe Mold are widely welcomed by more than twenty countries and regions as following:United States, Canada,Australia, Austria, France, Italy, Russia, Middle East, South Africa,Brazil and Singapore etc. HHF is highly trusted and acclaimed because of its Reasonable Price,Excellent Quality,Good Reputation and Perfect After-Sale Service.
HHF dedicates to enhance Made-in-China image in international market and always follows the Quality Policies “Keep Improving,Produce perfect machinery,Pursue excellence,Create First-Class Brand.” This policy makes HHF improves steadily. Up to now,HHF has become a well-known brand in Drilling Tools field and Large Precision Forging Field.
FAQ
1.Wha's your quote time?
Normally, it is up to 3days. We need to understand your requirements and critical dimensions.
2.How is quality controlled?
A. We have a dedicated QA team. B. We shall do one sample run, then a small batch run before mass order.For a sample order.
3.Can I come and visit you?
Yes, of course. We are pleased to welcome you to visit our company and discuss technical details and requirements with our team.
4.What's the production lead time?
Our pruction progress is from forging, rough machining ,Q+T to final machining.Itis usually 45days.
5.what are your payment terms?
We typically ask for 30% down payments to launch production, 70% balance before delivering goods.
